TiALN Coated Carbide Milling Cutters HRC57 With 4mm Shank

Product Categories
ZHUZHOU APPLE CARBIDE TOOLS CO.,LTD.
Contact Now

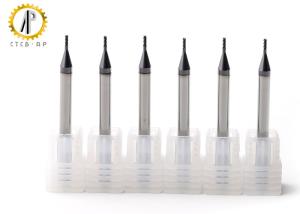

TiALN Coated Carbide Milling Cutters HRC57 With 4mm Shank

  • 1
  • 2
  • 3

Brand Name : CTCB.AP

Model Number : φ1-φ3

Certification : ISO

Place of Origin : China

MOQ : 1 PC

Price : USD1.74/PC-USD1.40/PC

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000/PCS per month

Delivery Time : 5-8 days

Packaging Details : Plastic per piece, paper carton outside

Material : Carbide

Coating : TiAlN

Cutting diameter : 1mm-3mm

Shank diameter : 4mm

Overall length : 50mm

Rod material : 12% Cobalt, 0.5um grain size

HRC : 55°-58°

Application : For steel, stainless still and other metal milling

Contact Now

HRC55-HRC58 Diameter 1mm-3mm With 4mm Shank Carbide Milling Cutter Tungsten Carbide End mill For Steel Stainless Steel

End mills tools which have cutting teeth at one end, as well as on the sides. End mill are generally used to refer to flat bottomed cutters, but also include ball nosed cutters and radiused cutters. They are usually made from cemented carbide, and have one or more flutes. They are the most common tool used in milling machines or machining centres to perform milling operations which are applied on carbide steel, alloy steel, Pre-hardened steel, cast iron,alloy steel, stainless steel and titanium alloy,hardened steel with high speed cutting and dry cutting.

The specifications of end mills

Specification Cutting diameter (mm) Shank diameter (mm) Flute length (mm) Overall length (mm) Flute
D1*D4*50*4T 1 4 3 50 4
D1*D4*75*4T 1 4 4.5 75 4
D1*D4*100*4T 1 4 5.5 100 4
D1.5*D4*50*4T 1.5 4 4 50 4
D1.5*D4*75*4T 1.5 4 5 75 4
D1.5*D4*100*4T 1.5 4 5.5 100 4
D2.0*D4*50*4T 2 4 6 50 4
D2.0*D4*75*4T 2 4 6 75 4
D2.0*D4*100*4T 2 4 8.5 100 4
D2.5*D4*50*4T 2.5 4 8 50 4
D3.0*D4*50*4T 3 4 7.5 50 4
D3.0*D4*75*4T 3 4 8 75 4
D3.0*D4*100*4T 3 4 10 100 4
D3.5*D4*50*4T 3.5 4 9 50 4
D3.5*D4*75*4T 3.5 4 9 75 4
D3.5*D4*100*4T 3.5 4 12 100 4
D4.0*D4*50*4T 4 4 11 50 4
D4.0*D4*75*4T 4 4 16 75 4
D5.0*D6*50*4T 5 6 13 50 4
D5.0*D6*75*4T 5 6 20 75 4
D5.0*D6*100*4T 5 6 25 100 4
D6.0*D6*50*4T 6 6 16 50 4
D6.0*D6*75*4T 6 6 25 75 4
D6.0*D6*100*4T 6 6 30 100 4
D6.0*D6*150*4T 6 6 30 150 4
D7.0*D8*60*4T 7 8 20 60 4
D8.0*D8*60*4T 8 8 20 60 4
D8.0*D8*75*4T 8 8 25 75 4
D8.0*D8*100*4T 8 8 35 100 4
D8.0*D8*150*4T 8 8 40 150 4
D10.0*D10*75*4T 10 10 25 75 4
D10.0*D10*100*4T 10 10 40 100 4
D10.0*D10*150*4T 10 10 50 150 4
D12.0*D12*75*4T 12 12 30 75 4
D12.0*D12*100*4T 12 12 45 100 4
D12.0*D12*150*4T 12 12 55 150 4
D14.0*D14*100*4T 14 14 40 100 4
D14.0*D14*150*4T 14 14 60 150 4
D16.0*D16*100*4T 16 16 45 100 4
D16.0*D16*150*4T 16 16 65 150 4
D18.0*D18*100*4T 18 18 45 100 4
D18.0*D18*150*4T 18 18 70 150 4
D20.0*D20*100*4T 20 20 45 100 4
D20.0*D20*150*4T 20 20 70 150 4

TiALN Coated Carbide Milling Cutters HRC57 With 4mm Shank

TiALN Coated Carbide Milling Cutters HRC57 With 4mm Shank

TiALN Coated Carbide Milling Cutters HRC57 With 4mm Shank

TiALN Coated Carbide Milling Cutters HRC57 With 4mm Shank

TiALN Coated Carbide Milling Cutters HRC57 With 4mm Shank
