High Frequency Welding Pipe ID Internal Carbide Scarfing Inserts Ring 65mm

Name: High Frequency Welding Pipe ID Internal Carbide Scarfing Inserts Ring 65mm
Brand: CTCB-AP
Price: 1 USD

China High Frequency Welding Pipe ID Internal Carbide Scarfing Inserts Ring 65mm factory

Brand Name : CTCB-AP

Model Number : R4.5

Certification : ISO9001

Place of Origin : CHINA

MOQ : 10 pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal

Supply Ability : 150000pcs/month

Delivery Time : 3-25days

Packaging Details : 10 pcs in a plastic box,and carton box outside

Ring Diameter : D8-D65mm

Material : carbide

Color : black and yellow

Pipe diameter : From 14 to 630 mm

Grade : YC331 YC333

Product name : Internal ID Scarfing Inserts

Contact Now

High Frequency Welding Pipe And Tubes Machining Hard Metal ID Internal Scarfing Inserts Rings

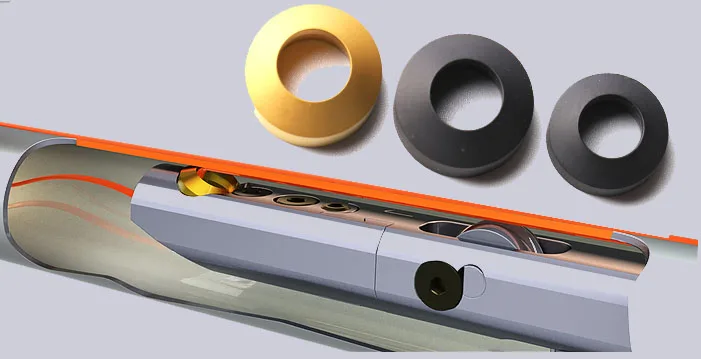

What is ID tube scarfing?

ID Tube Scarfing is a manufacturing process which used by tube and pipe producers to remove the internal longitudinal weld bead from the inside of the tubes or pipe,The scarfing process need to be processed immediately after welding, so that the material could be removed relatively easily. Therfore, it’s very important for scarfing tools and the corresponding inserts to be reliable and resist chipping and breaking of the cutting surface or the tool itself.

Grade Information for High Frequency Welding Pipe And Tubes Machining Hard Metal ID Internal Scarfing Inserts Rings :

YC332	Black	High strength and plastic resistant substrate combined with( MT-TiCN+thick AL2O3 + TiN )coating, has good toughness and resistance to plastic deformation. It is suitable for light rough machining and rough machining of steel parts.
YC333	Yellow	The combination of high strength and high toughness substrate with (MT-TiCN+thick AL2O3 + TiN )coating is the general brand of steel processing

What about the Scarfing inserts?

Scarfing inserts must be made of extremely hard materials to handle with the operating temperatures and removal of the metals. The inserts is to cut the weld bead as cleanly as possible without chattering or chipping and to maintain a smooth pipe surface while extending the life time of the inserts.

High Frequency Welding Pipe ID Internal Carbide Scarfing Inserts Ring 65mm

Model List of High Frequency Welding Pipe And Tubes Machining Hard Metal ID Internal Scarfing Inserts Rings

ITEM CODE	Machining Range (mm)	Cutting Edge Length(mm)
R4.5	14-17	8
R6.5	17-20	10
R7.0	20-26	13
R8.0	26-34	13
R9.0	24-36	13
R10.0	26-48	19
R11.0	28-50	19
R12.0	30-60	19
R14.0	32-41	22
R17.0	41-50	25
R23	48-72	30
R25	70-85	35
R28	85-100	35
R34	100-130	45
R39	125-160	50
R46	150-508	55
R52	260-610	65
R56	508-630	65

After-sale service:

1. Can be refund if there is a quality problem
2. Technical support will be offered once you need
3. Accepting customer visiting
